INS Vikrant

Aircraft Carrier Indian Navy India

INS Vikrant Aircraft Carrier Navy India Technical Data

Description

The INS Vikrant is the first indigenous aircraft carrier design being undertaken by the nation of India. It is one of two planned vessels in the new "Vikrant-class" of surface warships and has seen construction begin in 2009. It is expected to undergo its sea trials in 2014 though the program has since fallen some three years behind schedule and commissioning will most likely be post-2017).

INS Vikrant Aircraft Carrier Model Variants:

/


Technical Data


Weapon Systems
 Main armament 4 × Otobreda 76 mm (3 in) dual-purpose cannons
 Torpedoes NA
 Auxiliary Armament AK-630 CIWS
 Missiles Barak 1 & Barak 8 surface-to-air missile launchers (2 x 32 cells VLS)
 Counter-Measures NA
Engines/Propulsion
Engines Two shafts
Speed 28 knots
Range 8600 nm
Onboard Equipment
Sensors NA
Radars  Selex RAN-40L long-range early warning and surveillance AESA radar;
Elta EL/M-2248 MF-STAR AESA multifunction radar

Specifications

Dimensions Displacement
- Length: 262,13m - 860ft
- Width: 60,96m - 200ft
- Height: 8,53m - 28ft
 40,000 tonnes
Beam Draught
62m - 203ft 8.4m - 28ft
Aircraft Carried Crew
40 1645
Aircraft Names Date of service
NA 2019
Country Manufacturer Country operators
India India

Details View

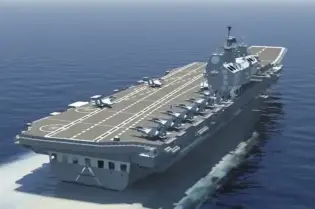

INS Vikrant Aircraft Carrier Navy India Technical Data 005

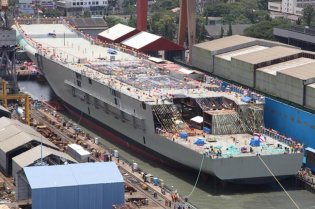

INS Vikrant Aircraft Carrier Navy India Technical Data 003

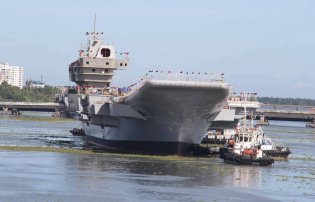

INS Vikrant Aircraft Carrier Navy India Technical Data 002

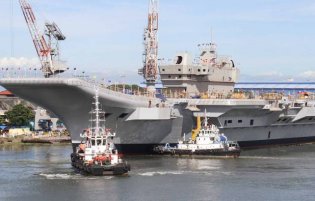

INS Vikrant Aircraft Carrier Navy India Technical Data 004
