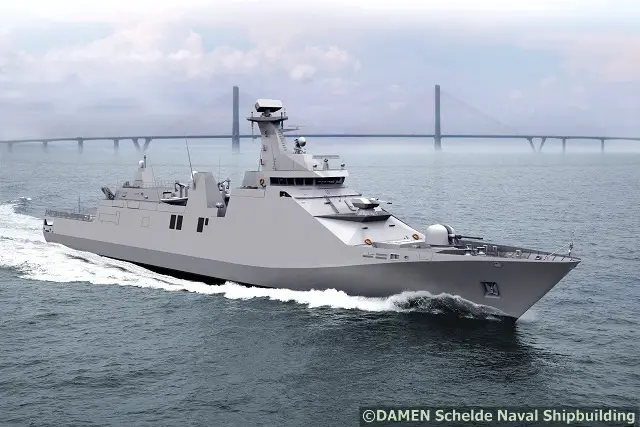

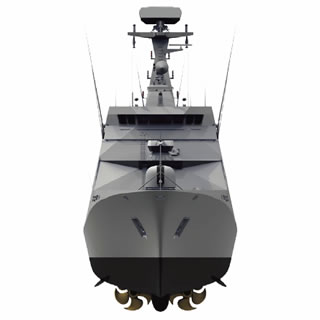

SIGMA 10514 PKR Frigate - Indonesia Navy (TNI AL)
Damen Schelde Naval Shipbuilding - PT PAL
The Ministry of Defence of Indonesia and Dutch Shipyard Damen Schelde Naval Shipbuilding signed ni June 2012 a contract for the engineering, build and delivery of a SIGMA 10514 Guided Missile Frigate, PKR (Perusak Kawal Rudal). The PKR will be built for the Indonesian Navy, TNI AL, and is to be delivered in 2016.
The acquisition of this ship is part of the further modernization and expansion of the Indonesian Navy, TNI-AL. The main missions and tasks of the SIGMA PKR 10514 will be in the domains of naval warfare as well as Maritime Security missions and tasks. Also, the ship may be used for humanitarian support tasks.
The ship will be built according to the successful SIGMA modular building strategy, as a sequel to the earlier built four SIGMA Corvettes for TNI AL. This means that modules of the frigate will be built in Europe as well as locally at PT PAL in Surabaya Indonesia. The assembly and trials of SIGMA PKR 10514 will take place in and from Surabaya, Indonesia.
- SIGMA__9113: SIGMA class Corvette displacing 1,700 tonnes for 90 meters in length. Four vessels in use with the Indonesian Navy (TNI-AL).
- SIGMA__9813: SIGMA class Frigate displacing 1,950 tonnes for 98 meters in length. Two vessels in use with the Royal Morrocan Navy.
- SIGMA 10513: SIGMA class Frigate displacing 2,185 tonnes for 105 meters in length. One vessel in use with the Royal Morrocan Navy.
|Back to top|
Hull material: Steel grade A / AH36
Standards: Naval / Commercial, naval intact / damaged stability, noise reduced, moderate shock
» Patrol in the EEZ
» Search and Rescue
» ASW, AAW, ASUW, EW
» 1x Oto Melara 76/62 Compact 76mm Main Gun
» 1x Rheinmetall Millenium 35mm CIWS
» 8x MBDA MM40 Blk III antiship missiles
» 12x MBDA MICA VL surface to air missiles (in VLS)
» 2x Triple torpedo launchers

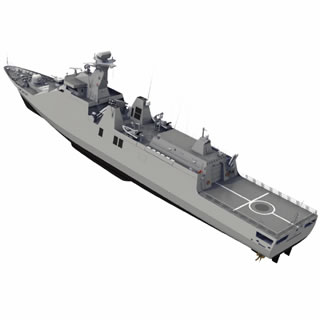

Helicopter deck: max. 10 tons helicopter, with lashing points
» Heli operations: day/night with refuelling system
» Helicopter hangar
» RAS on helicopter deck PS&SB, astern fuelling
» Boats: 2 x RHIB
|Sensors, Electronics, Decoys|
Thales Smart-S Mk2 3D-Surveillance & target indication radar & IFF
Radar / electro optical fire control
Hull Mounted Sonar
Thales TACTICOS Combat management system
ESM & ECM
Integrated internal & external communication system
Integrated bridge console
2 x Navigation radar
2 x Decoys / chaff launchers
Diesel engines: 2 x 10000 kW MCR Propulsion type
Electric motors: 2 x 1300 kW
Gearbox: 2 x double input input/single output
Propellers: 2 x CPP diameter 3.55 m
|Back to top|
