Shivalik Class frigate - Indian Navy
Shivalik Guided Missile Frigate - INS



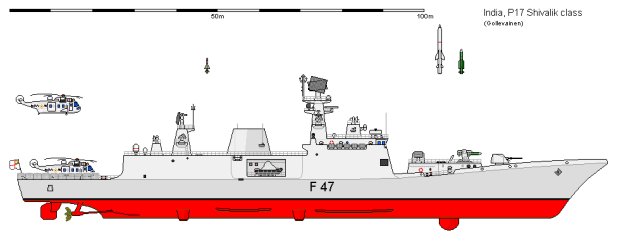

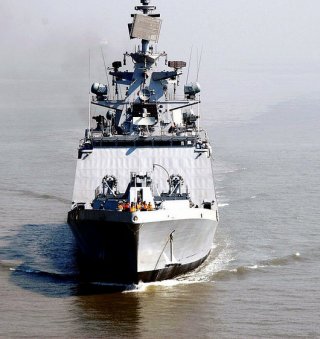

Description

The Shivalik class or Project 17 class is a class of multi-role stealth frigates in service with the Indian Navy. They are the first stealth warships built in India. A total of three ships were built between 2000 and 2010, and all three were in commission by 2012.

Shivalik's design embodies many firsts in Indian ships. Shivalik is the first Indian naval vessel to use a combined diesel or gas (CODOG) propulsion system and to adopt a stealth design.

The Shivalik class, along with the seven Project 17A frigates currently being developed from them, are projected be the principal frigates of the Indian Navy in the first half of the 21st century. All ships of the class were built by Mazagon Dock Limited. The class and the lead vessel have been named for the Shivalik hills. Subsequent vessels in the class are also named for hill-ranges in India.

Originally conceived as a successor to the Talwar-class frigates, the Shivalik class frigates feature improved stealth features and land attacking capabilities. The main features of the class are its stealth characteristics and land-attack capability. The ships incorporate structural, thermal and acoustic stealth features.


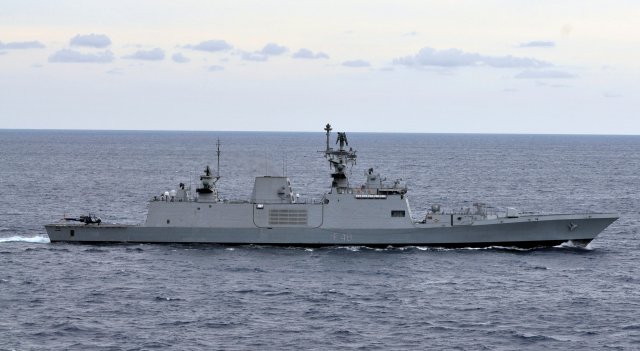

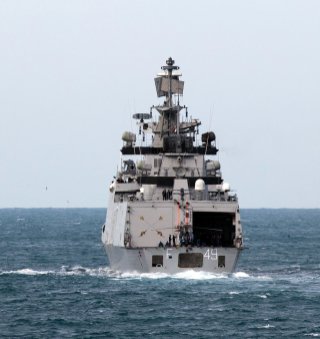

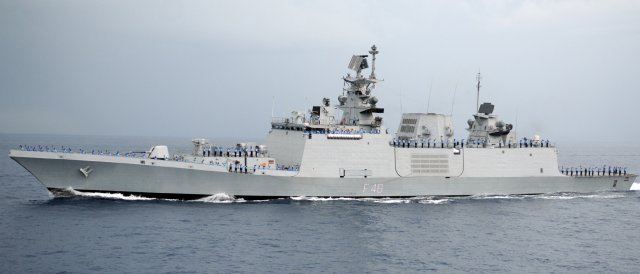

Shiplist
Name
Hull Number
Launched
Commissioned
Shivalik
47
07/2001
04/2010
Satpura
48
06/2004
08/2011
Sahyadri
49
05/2005
07/2012

Variants
- Project 17A: advanced stealth frigates
Technical Data
Back to top
Missions
» Strike against land targets
» Long range patrol and surveillance
» Escort of high value assets such as Aircraft Carrier and Amphibious Vessels

» ASW, AAW, ASUW, EW
Design
Shivalik-class meets the specifications for the project called for a class of "5000 ton stealth frigates (Project 17) incorporating advanced signature suppression and signature management features". The main features of the class are its stealth characteristics and land-attack capability. The ships incorporate structural, thermal and acoustic stealth features.
Weapons

Guns:
» 1x 76mm OTO Melara Super Rapid (will be replaced by OTO Melara 127/64 LW gun)
» 2x 30mm AK-630 CIWS

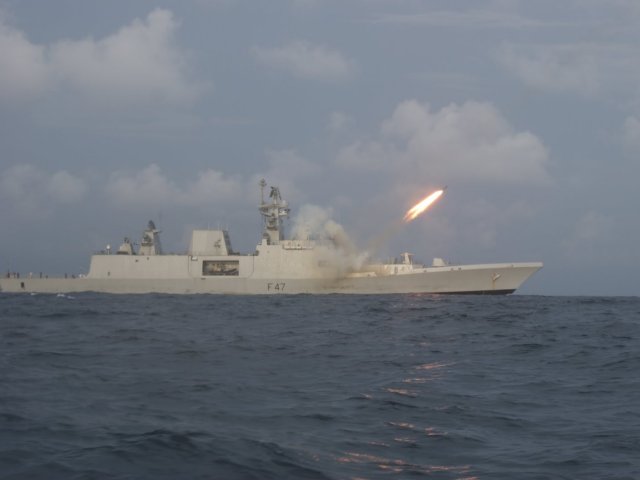

Missiles:
» 32x VLS for Barak 1 anti-air missile
» 24x Shtil-1 medium range missile
» 8x VLS for Klub anti-ship cruise missile

» 8x VLS for BrahMos anti-ship and land attack cruise missile
Anti-submarine warfare:
» 2x RBU-6000 (RPK-8) rocket launcher
Torpedoes:
» 2x 2 533mm DTA-53-956 torpedo launcher

Sensors, Electronics, Decoys
  • Combat Management and Information Systems:
    BEL Ajanta electronic warfare suite
  • Optronics:
    n/a
  • Radars and Sensors:
    1x Top Plate MR-760 Fregat M2EM 3-D radar
    4x Front Dome MR-90 Orekh radar
    1x Elta EL/M-2238 STAR air surface search radar
    2x Elta EL/M 2221 STGR fire control radar
    1x BEL Aparna fire control radar
  • Sonar:
    1x HUMSA hull-mounted sonar array
    1x ATAS/Thales Sintra towed array systems
  • Decoys/Counter measures/Jammers:
    n/a
  • Communications:
    n/a
Engines/Propulsion/Power
Propulsion type: CODOG (COmbined Diesel Or Gas)
Diesel engines: 2× Pielstick 16 PA6 STC 15,200 shp (11,300 kW)
Gas turbines: 4x General Electric LM-2500 33,600 shp (25,100 kW)

Specifications
Type
Guided Missile Frigate
Crew
+- 257
Operators
Indian Navy
Performance
Speeds: 32 kts (max) / 22 kts (diesel engines)
Range: 5,000 nm @ 18kts
Endurance: ?
Designer / Builder
Severnoye / Mazagon Dock Limited
Displacement
5,000 tons (full load)
Aviation
Helipad for 2 helicopters
Dimensions
Length: 142.5 m
Beam: 16.9 m
Maximum Draft: 4.5 m
