RB-M / RB-M C - Kvichak Response Boat Medium
Self-righting
All-aluminum Patrol Boat for Maritime & Homeland security, Search & Rescue missions



Kvichak Marine's Response Boat Medium (RB-M) is a 13.7 meter fast patrol boat operated by the US Coast Guard for Maritime Security, Homeland Security and SAR missions. It is capable of speeds in excess of 40 knots and is self-righting in all conditions.

Description

Kvichak Marine's Response Boat Medium (RB-M) is a 13.7 meter fast patrol boat operated by the US Coast Guard for Maritime Security, Homeland Security and SAR missions. It is capable of speeds in excess of 40 knots and is self-righting in all conditions.


Contact

Kvichack Marine
Main Office - Seattle Facility
469 NW Bowdoin Place
Seattle, WA 98107
Phone: 206-545-8485
Fax: 206-545-3504
Click Here to send a request to Kvichak Marine

Variants
- RB-M: U.S Coast Guard variant
- RB-M C: Commercial version customized to meet the specific mission requirements of Law Enforcement Organizations (Sheriff Offices, Police Departments...)

Technical Data
Back to top
Design / Features
» All-aluminum construction
» Self-righting in all conditions
» Port, starboard and aft recovery platforms
» Survivor’s compartment with seating for five
» Pilothouse with shock–mitigating seats for greater crew comfort and endurance
» Deep V, double-chine hull for a balance of speed and stability in various conditions
» Prominent fendering, which allows the boat to come alongside without risk of damage from bumping or shifting and frees the crew for other tasks
» Twin diesel engines with waterjet propulsion, eliminating propellers beneath the boat to make it safer to retrieve someone from the water and protect the engines from debris
Missions
» Inshore Patrol
» Harbor Patrol
» Maritime Security
» Homeland Security
» Law Enforcement
» Search and Rescue
Sensors, Electronics, Weapons
Electronic & Navigation Systems:
» Furuno Navnet 1934CN/T
Radar
» Furuno CMAP Display
» Furuno GPS
» Furuno Depth sounder
» FLIR navigator thermal imager
» L3 Communications Automatic Identification System (AIS)

Communication Systems:
» ICOM IC-M604 VHF and hailer
» Motorola 5000 digital mobile radio
» Gentex LVIS digital intercom system

Weapons:
» 2x M240B general-purpose machine guns with bow and aft mounting points
Engines/Propulsion/Power

Engine: 2x MTU Series 60 engines, 825 hp
Propulsion : 2x Rolls Royce - Kamewa FF 375S waterjets
Genset: AuraGen VIPER G8500X


Specifications
Type
Patrol Boat
Crew
4 crew. Up to 6 support crew.
Operators
US Coast Guards, US Law Enforcement Offices
Performance
Max speed (load): 43 Knots; Cruise speed: 30 Knots
Range: 250 nm @ 30 knots
Endurance: 1 day
Designer / Builder
Camarc Design / Kvichack Marine Industries
Displacement
16.3 tons
Propulsion
Twin Waterjets
Dimensions
Length: 13.6.m (44.5’)
Beam: 4.2m (13.7’)
Maximum Draft: 0.9m (3.0’)

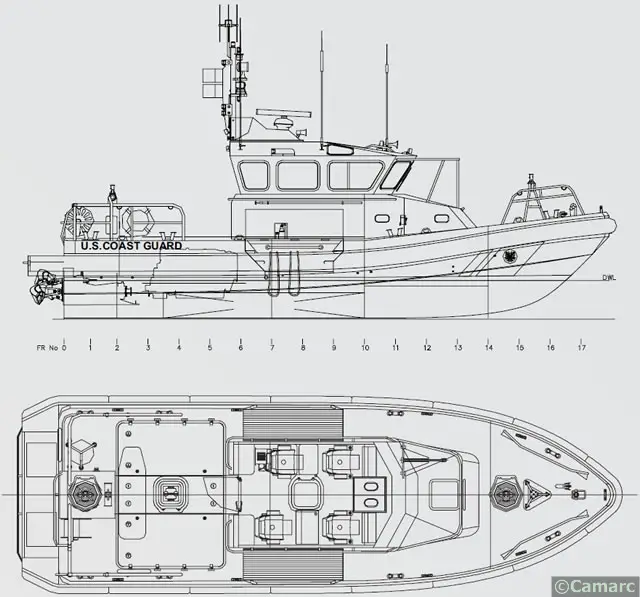

Detailed View
Kvichak Marine's Response Boat Medium (RB-M) is a 13.7 meter fast patrol boat operated by the US Coast Guard for Maritime Security, Homeland Security and SAR missions. It is capable of speeds in excess of 40 knots and is self-righting in all conditions.
Kvichak Marine's Response Boat Medium (RB-M) is a 13.7 meter fast patrol boat operated by the US Coast Guard for Maritime Security, Homeland Security and SAR missions. It is capable of speeds in excess of 40 knots and is self-righting in all conditions.
Kvichak Marine's Response Boat Medium (RB-M) is a 13.7 meter fast patrol boat operated by the US Coast Guard for Maritime Security, Homeland Security and SAR missions. It is capable of speeds in excess of 40 knots and is self-righting in all conditions.
.
Kvichak Marine's Response Boat Medium (RB-M) is a 13.7 meter fast patrol boat operated by the US Coast Guard for Maritime Security, Homeland Security and SAR missions. It is capable of speeds in excess of 40 knots and is self-righting in all conditions.

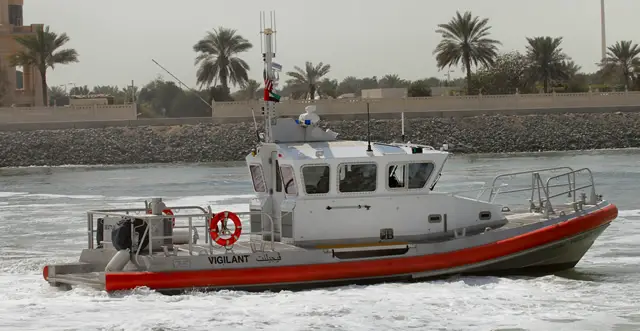

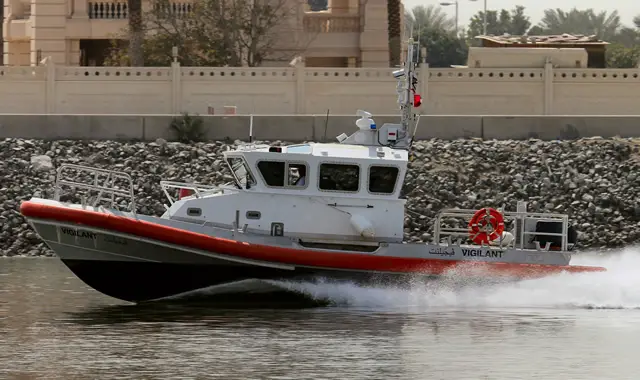

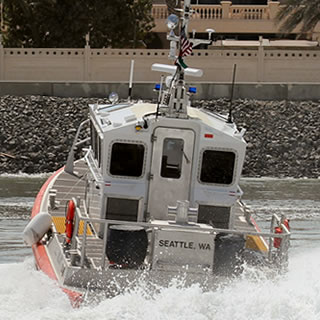

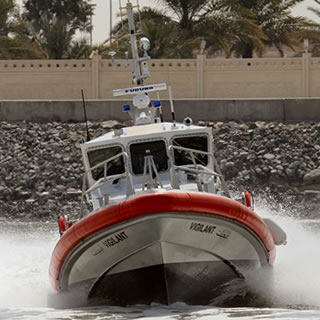

Pictures - Video
